A complete analysis in one chapter

This chapter runs one small population PK analysis from start to finish. It uses the bundled warfarin example (a one-compartment oral model) and moves through every stage of the workflow the book is built around:

data → model → estimate → evaluate → simulate → report

Each section is deliberately short. It shows the one call you need and ends with a pointer to the chapter that covers that stage in depth. Every result below was produced by the code shown, on the pinned ferx-r build (16614e2).

The data

Every chapter starts by loading ferx, plus dplyr and ggplot2 for data handling and plots:

ferx ships example models and datasets with the package. ferx_example() takes one argument, name. Given a name, it returns the file paths for that example; called without name, it lists what is available:

length(ferx_example())
#> [1] 70
head(ferx_example())
#> [1] "adaptive_tdm"            "adaptive_vanco_loading"
#> [3] "binary_logistic"         "bioavailability_ode"
#> [5] "bioavailability"         "biphasic_igd_absorption"
ex <- ferx_example("warfarin")
names(ex)
#> [1] "model"  "data"   "search"

ex$model is the model file, ex$data the dataset, and ex$search a model-search configuration used later in Model development and selection. The dataset is a plain CSV with one row per dose or observation. . marks an empty cell, so read it with na.strings = ".":

obs <- read.csv(ex$data, na.strings = ".")
head(obs)
#>   ID TIME      DV EVID AMT CMT RATE MDV
#> 1  1  0.0      NA    1 100   1    0   1
#> 2  1  0.5  5.3653    0  NA   1    0   0
#> 3  1  1.0  8.2578    0  NA   1    0   0
#> 4  1  2.0 10.7063    0  NA   1    0   0
#> 5  1  4.0 11.4142    0  NA   1    0   0
#> 6  1  8.0 10.9232    0  NA   1    0   0

The first row of each subject is the dose (EVID = 1, AMT = 100). The rows after it are concentrations (EVID = 0, DV). The dataset holds 10 subjects and 110 observations. Always look at the data before modeling:

obs |>
  filter(EVID == 0) |>
  ggplot(aes(TIME, DV, group = ID)) +
  geom_line(alpha = 0.5) +
  geom_point(size = 1) +
  labs(x = "Time (h)", y = "Concentration")

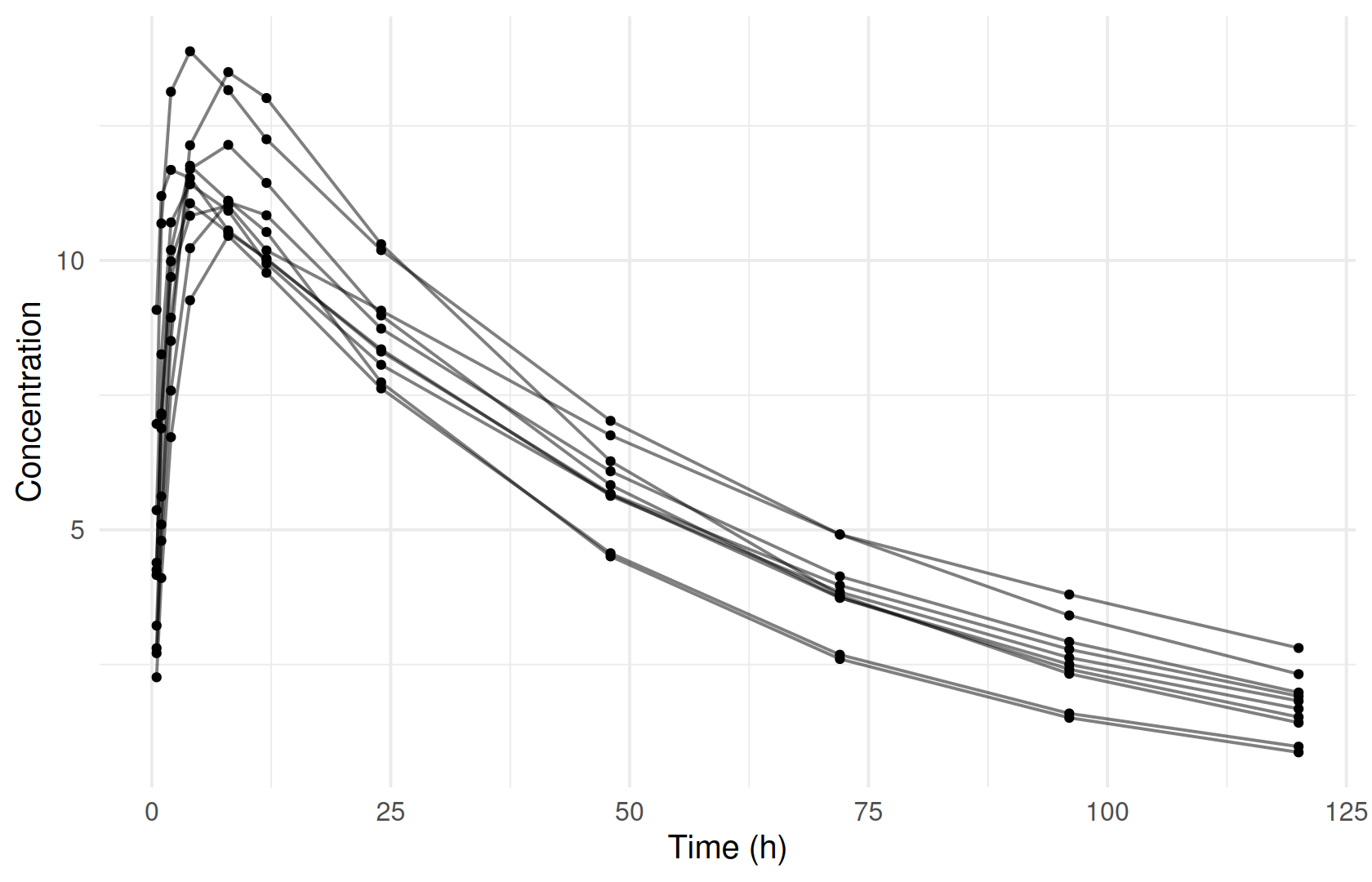

Figure 2.1: Observed warfarin concentrations, one line per subject.

➜ Column meanings, data checks and record selection: Preparing and checking the analysis dataset.

The model

A ferx model is a text file with one section per concern. ferx_model_show() prints it:

ferx_model_show(ex$model)
#> # model: warfarin.ferx
#> # One-compartment oral PK model (warfarin)
#>
#> [parameters]
#>   theta TVCL(0.134, 0.001, 10.0)
#>   theta TVV(8.1, 0.1, 500.0)
#>   theta TVKA(1.0, 0.01, 50.0)
#>
#>   omega ETA_CL ~ 0.07
#>   omega ETA_V  ~ 0.02
#>   omega ETA_KA ~ 0.40
#>
#>   sigma PROP_ERR ~ 0.01 (sd)
#>
#> [individual_parameters]
#>   CL = TVCL * exp(ETA_CL)
#>   V  = TVV  * exp(ETA_V)
#>   KA = TVKA * exp(ETA_KA)
#>
#> [structural_model]
#>   pk one_cpt_oral(cl=CL, v=V, ka=KA)
#>
#> [error_model]
#>   DV ~ proportional(PROP_ERR)
#>
#> [fit_options]
#>   method     = foce
#>   maxiter    = 300
#>   covariance = true

Reading it top to bottom:

  • [parameters] declares fixed effects as theta NAME(initial, lower, upper) and between-subject variances as omega. sigma is the residual error; (sd) marks its initial value as a standard deviation.
  • [individual_parameters] builds each subject’s CL, V and KA from the thetas and log-normal random effects.
  • [structural_model] selects the built-in one-compartment oral model.
  • [error_model] makes the residual error proportional.
  • [fit_options] sets the estimation method (foce), the iteration limit and the covariance step.

➜ Writing, inspecting, validating and editing model files: Writing and managing model files.

Estimating

ferx_fit() takes the model and the data. The options in [fit_options] apply unless you override them in the call:

fit <- ferx_fit(ex$model, ex$data, verbose = FALSE)
fit
#> ============================================================
#>  NONLINEAR MIXED EFFECTS MODEL ESTIMATION
#> ============================================================
#>  Model: warfarin                 Dataset: warfarin
#>  Method: FOCE | Gradient: ANALYTIC | Subjects: 10 | Obs: 110
#>
#>  STATUS: CONVERGED   55 iterations   0.0s
#>  OFV: -280.3595    AIC: -266.3595    BIC: -247.4561
#>
#> MODEL STRUCTURE (auto-derived)
#> ------------------------------------------------------------
#>   Structural:  1-cpt oral  (TVCL, TVV, TVKA)
#>   IIV:         ETA_CL, ETA_V, ETA_KA
#>   IOV:         none
#>   Residual:    proportional
#>
#> THETA
#> ------------------------------------------------------------
#> Parameter            Estimate           SE       %RSE
#> ----------------------------------------------------
#> TVCL                 0.132974     0.006628        5.0
#> TVV                  7.730568     0.234046        3.0
#> TVKA                 0.725259     0.124477       17.2
#>
#> OMEGA  (between-subject variability)
#> ------------------------------------------------------------
#>   ETA_CL               [log-normal] = 0.028597  (CV% = 17.0)  SE = 0.012799
#>   ETA_V                [log-normal] = 0.009578  (CV% = 9.8)  SE = 0.004298
#>   ETA_KA               [log-normal] = 0.348920  (CV% = 64.6)  SE = 0.160785
#>
#> SIGMA  (residual error)
#> ------------------------------------------------------------
#>   PROP_ERR         [proportional] = 0.010748  (var = 0.000116, CV% = 1.1)  SE = 0.000942  [initial specified as SD]
#>
#> SHRINKAGE
#> ------------------------------------------------------------
#>  ETA_CL: 0.0%   ETA_V: 0.2%   ETA_KA: 0.0%   EPS: 16.0%
#>
#> DIAGNOSTICS
#> ------------------------------------------------------------
#>  Covariance: computed   Cond: 2.6   DW: 2.73 [negative autocorrelation]   IWRES lag-1 r: -0.365
#>
#> RUN INFO
#> ------------------------------------------------------------
#>  Gradient (requested): auto   (used: analytic)
#>  ferx v0.4.0.9000 (core v0.4.0)
#>
#> SETTINGS  (model file / call-time override)
#> ------------------------------------------------------------
#>   method                       foce  [model only]
#>   maxiter                      300  [model only]
#>   covariance                   true  [model only]
#>
#> ------------------------------------------------------------
#>  1 warning  --  call ferx_get_warnings(fit) for details
#> ============================================================

The fit converged (fit$converged is TRUE) with an objective function value of -280.36. The printout also reports shrinkage, a diagnostics line, the settings that were used, and a count of warnings. The estimates are also available as a data frame, ready for your own tables:

fit$estimates[, c("param", "transform", "estimate", "se", "rse_pct", "lower_95", "upper_95")]
#>             param    transform    estimate          se   rse_pct    lower_95
#> TVCL         TVCL     identity 0.132974266 0.006627764  4.984245 0.119983849
#> TVV           TVV     identity 7.730567625 0.234046423  3.027545 7.271836635
#> TVKA         TVKA     identity 0.725258612 0.124477063 17.163128 0.481283568
#> ETA_CL     ETA_CL     variance 0.028597228 0.012799151 44.756614 0.003510892
#> ETA_V       ETA_V     variance 0.009578215 0.004297905 44.871664 0.001154322
#> ETA_KA     ETA_KA     variance 0.348919535 0.160784993 46.080823 0.033780949
#> PROP_ERR PROP_ERR proportional 0.010748072 0.000941583  8.760483 0.008902569
#>            upper_95
#> TVCL     0.14596468
#> TVV      8.18929862
#> TVKA     0.96923365
#> ETA_CL   0.05368356
#> ETA_V    0.01800211
#> ETA_KA   0.66405812
#> PROP_ERR 0.01259357

➜ Initial estimates and reading a fit: Initial estimates and a first fit. Choosing and tuning estimation methods: Estimation methods and controlling the fit.

Evaluating

fit$sdtab holds one row per observation with population (PRED) and individual (IPRED) predictions and residuals:

head(fit$sdtab)
#>   ID TIME      DV      PRED     IPRED       CWRES      IWRES   EBE_OFV N_OBS
#> 1  1  0.5  5.3653  3.916568  5.354089  0.83698224  0.1948233 -27.11702    11
#> 2  1  1.0  8.2578  6.608349  8.285651  0.12500628 -0.3127395 -27.11702    11
#> 3  1  2.0 10.7063  9.695409 10.708975  0.04455456 -0.0232423 -27.11702    11
#> 4  1  4.0 11.4142 11.640616 11.381964 -0.11907341  0.2635070 -27.11702    11
#> 5  1  8.0 10.9232 11.506465 10.756208  0.92646198  1.4444641 -27.11702    11
#> 6  1 12.0  9.9442 10.776561 10.067873 -1.44290760 -1.1428957 -27.11702    11
#>   TAFD  TAD
#> 1  0.5  0.5
#> 2  1.0  1.0
#> 3  2.0  2.0
#> 4  4.0  4.0
#> 5  8.0  8.0
#> 6 12.0 12.0

Two standard goodness-of-fit views:

library(patchwork)
p_pred <- fit$sdtab |>
  tidyr::pivot_longer(c(PRED, IPRED), names_to = "prediction") |>
  ggplot(aes(value, DV)) +
  geom_abline(linetype = "dashed") +
  geom_point(alpha = 0.6) +
  facet_wrap(~prediction) +
  labs(x = "Prediction", y = "Observation")
p_cwres <- ggplot(fit$sdtab, aes(TIME, CWRES)) +
  geom_hline(yintercept = 0, linetype = "dashed") +
  geom_point(alpha = 0.6) +
  labs(x = "Time (h)", y = "CWRES")
p_pred + p_cwres + plot_layout(widths = c(2, 1))

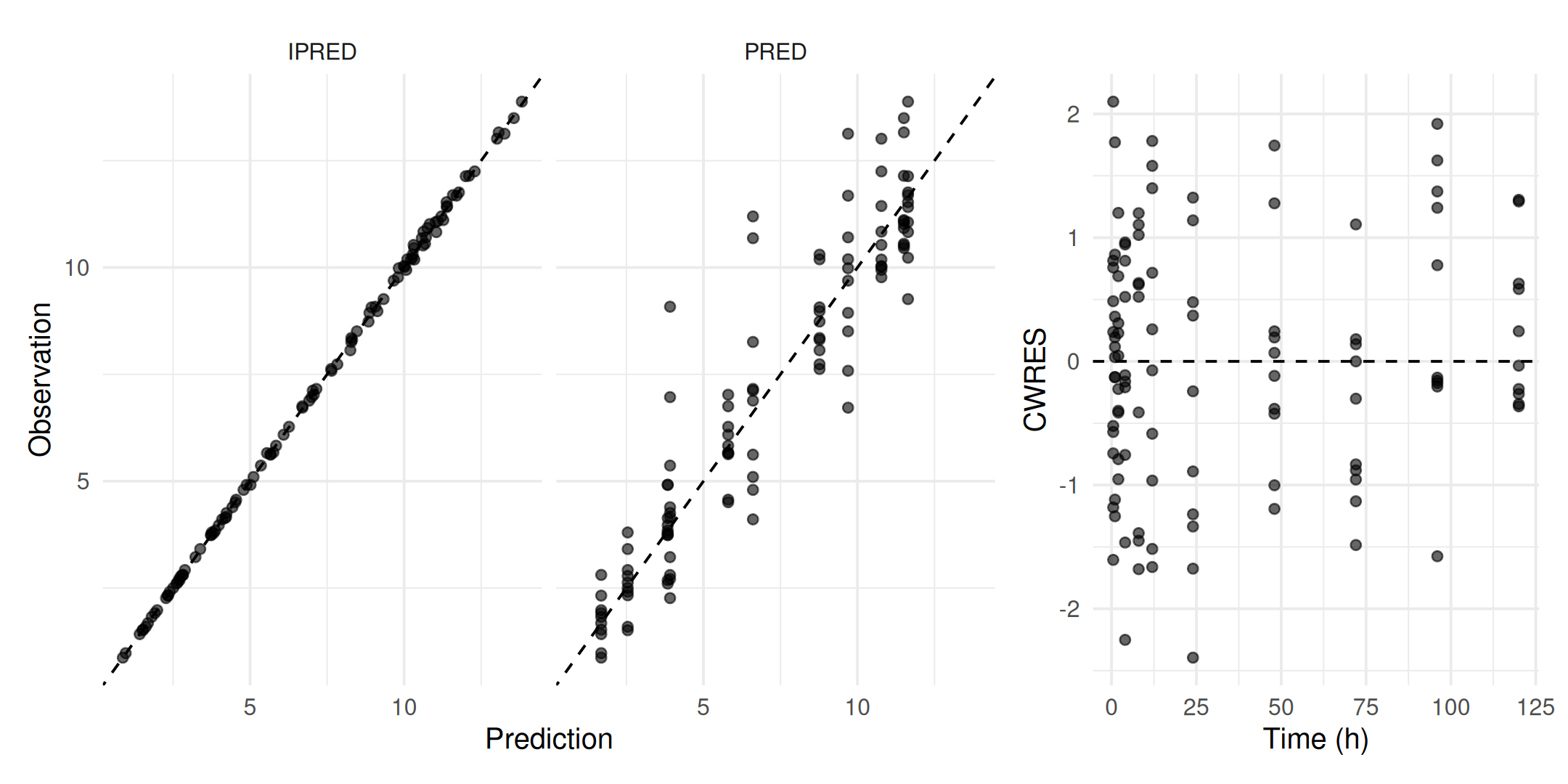

Figure 2.2: Observations against population and individual predictions (left); conditional weighted residuals over time (right).

The printout above ends with a warning count. ferx_get_warnings() shows what those warnings say:

ferx_get_warnings(fit)
#> ferx fit warnings  (warfarin)
#> -------------------------------------------------
#> [WARNING]  dw_autocorrelation
#>             Negative IWRES autocorrelation detected (Durbin-Watson = 2.73).
#>             Possible over-parameterization or misspecified error model.
#>             Negative IWRES autocorrelation suggests over-parameterisation or a
#>             misspecified error model. Consider removing a parameter or
#>             simplifying the residual model.
#>             details: durbin_watson, iwres_lag1_autocorr (ferx_get_warnings(fit,
#>             as_df = TRUE)$details)
#>
#> -------------------------------------------------
#> 0 CRITICAL   1 WARNING   0 INFO

➜ Goodness of fit, shrinkage, NPDE and warnings: Diagnosing the model.

Simulating

ferx_simulate() replicates the study design with the fitted parameters. Here it draws new random effects and residual errors 200 times:

sim <- ferx_simulate(ex$model, ex$data, n_sim = 200, seed = 42, fit = fit)
head(sim)
#>   DRAW SIM ID TIME CMT     IPRED    DV_SIM OBSERVED
#> 1    1   1  1  0.5   1  4.387841  4.377216       NA
#> 2    1   1  1  1.0   1  7.223342  7.171773       NA
#> 3    1   1  1  2.0   1 10.197134 10.173527       NA
#> 4    1   1  1  4.0   1 11.727007 11.751450       NA
#> 5    1   1  1  8.0   1 11.344413 11.524433       NA
#> 6    1   1  1 12.0   1 10.604424 10.455109       NA

Comparing percentiles of the observed data with the spread of the same percentiles across simulated replicates gives a visual predictive check. ferx supplies the simulations, and the plot is a few lines of dplyr and ggplot2. The warfarin samples fall on shared nominal times, so no binning is needed here:

pct <- function(df, value) {
  df |>
    summarise(
      p10 = quantile({{ value }}, 0.10),
      p50 = quantile({{ value }}, 0.50),
      p90 = quantile({{ value }}, 0.90),
      .groups = "drop"
    ) |>
    tidyr::pivot_longer(c(p10, p50, p90), names_to = "percentile")
}
sim_bands <- sim |>
  group_by(SIM, TIME) |>
  pct(DV_SIM) |>
  group_by(TIME, percentile) |>
  summarise(lo = quantile(value, 0.05), hi = quantile(value, 0.95), .groups = "drop")
obs_lines <- obs |>
  filter(EVID == 0) |>
  group_by(TIME) |>
  pct(DV)

ggplot() +
  geom_ribbon(data = sim_bands, aes(TIME, ymin = lo, ymax = hi, fill = percentile), alpha = 0.3) +
  geom_point(data = filter(obs, EVID == 0), aes(TIME, DV), size = 0.8, alpha = 0.4) +
  geom_line(data = obs_lines, aes(TIME, value, linetype = percentile), linewidth = 0.7) +
  labs(x = "Time (h)", y = "Concentration", fill = "Simulated", linetype = "Observed")

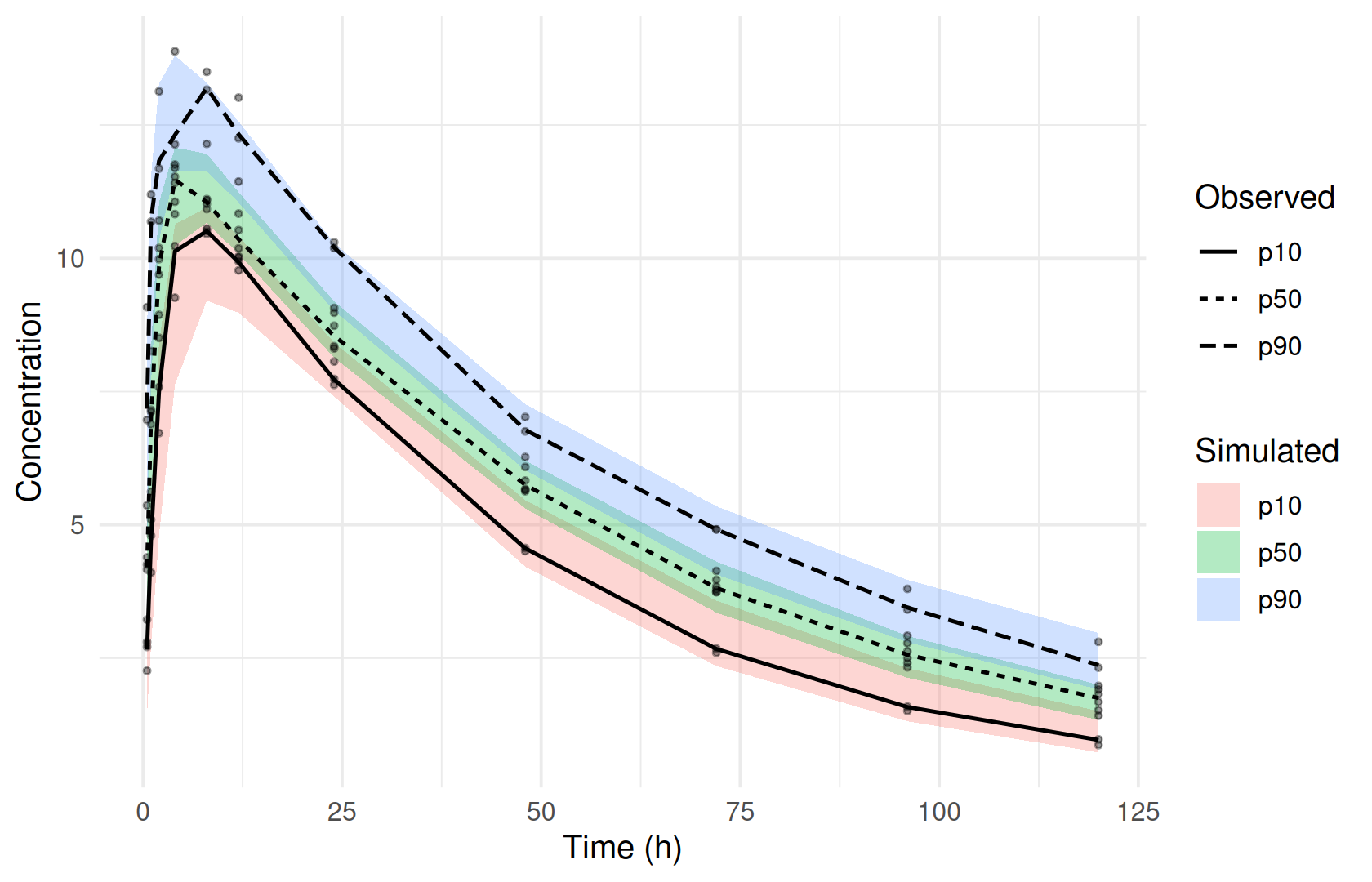

Figure 2.3: Visual predictive check: observed 10th, 50th and 90th percentiles (lines) against 90% intervals of the simulated percentiles (bands).

➜ VPCs, including binning and matched simulation: Simulation-based evaluation: VPC. Simulating new scenarios: Simulating scenarios.

Reporting

A parameter table comes straight from fit$estimates:

fit$estimates |>
  select(param, estimate, se, rse_pct, lower_95, upper_95) |>
  gt::gt() |>
  gt::fmt_number(columns = c(estimate, se, lower_95, upper_95), n_sigfig = 3) |>
  gt::fmt_number(columns = rse_pct, decimals = 1) |>
  gt::cols_label(param = "Parameter", estimate = "Estimate", se = "SE",
                 rse_pct = "RSE (%)", lower_95 = "95% CI lower", upper_95 = "95% CI upper")
Table 2.1: Warfarin parameter estimates.
Parameter Estimate SE RSE (%) 95% CI lower 95% CI upper
TVCL 0.133 0.00663 5.0 0.120 0.146
TVV 7.73 0.234 3.0 7.27 8.19
TVKA 0.725 0.124 17.2 0.481 0.969
ETA_CL 0.0286 0.0128 44.8 0.00351 0.0537
ETA_V 0.00958 0.00430 44.9 0.00115 0.0180
ETA_KA 0.349 0.161 46.1 0.0338 0.664
PROP_ERR 0.0107 0.000942 8.8 0.00890 0.0126

ferx_save_fit() writes the whole fit (estimates, per-subject values, predictions and the model source) to a single .fitrx file. A path without an extension gets .fitrx appended. Here it goes to a directory under tempdir(); in a project, write it next to the analysis:

run_dir <- file.path(tempdir(), "complete-analysis")
dir.create(run_dir, showWarnings = FALSE)
ferx_save_fit(fit, file.path(run_dir, "warfarin-run1"))
list.files(run_dir)
#> [1] "warfarin-run1.fitrx"

➜ Report tables and figures: Tables and figures. Saving, reloading and reproducibility: Reproducibility and sharing.

Where to go next

The rest of the book repeats this loop in depth. Part II walks through each workflow stage on a larger dataset with covariates. The scenario Parts apply the loop to specific problems: absorption, covariates, dosing, censored data, PK/PD, binary and time-to-event endpoints, adaptive dosing, and experimental features.
